CIMC 40Ton Tri Axle Sideboard Dropside Truck Flatbed Trailers

Ask Lasest Price
Brand Name :	CIMC
Model Number :	40Ton drop side trailer
Certification :	CE
Price :	USD 9700-12500/Unit
Payment Terms :	L/C, D/A, T/T, Western Union, MoneyGram, D/P
Supply Ability :	300 Unit/Units per Month
Delivery Time :	25-30 Works

Add to Cart

Product Details
Company Profile

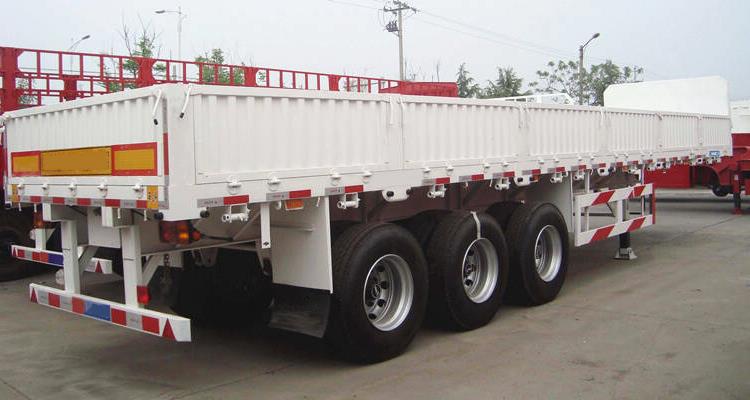

CIMC 40Ton Tri Axle Sideboard Dropside Truck Flatbed Trailers

40Ton Tri Axle Drop Side Trailer with Side Wall For Sale-CIMC Trailer

Product Description:

As for the sidewall trailer in the existing freight market, they are generally mainly used for transporting building materials, furniture and some lightly thrown goods. It can be used as a dropside trailer.

CIMC side board trailer can be customized according to the different requirements of customers in different countries.Sideboard trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers.

In fact, for the operation of trucks, trailers are as important as tractors.Side Wall Semi Trailer have become an important part of transportation, but many cargo trailer owners pay attention to tractors and ignore trailers when using vehicles.

Specification of Side Wall Semi Trailer:

Dimension	12500mm2500mm2350mm(800mm sidewall)
Payload	50-60ton
Container lock	12 pcs
Axles	3 axles, Fuwa/BPW /CIMC or other Chinese famous brand
Tire	12 units
Brake system	WABCO brake system with dual brake chambers and emergency brake valve
Suspension	Mechanical / airbag / bogie suspension
King Pin	JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear	JOST brand
Accessories	Tool box , spare tire carrier

Safty Loading of cargo semi trailer:

1.When loading and unloading, you must use a forklift according to the requirements of each vehicle, and loading and unloading beyond the limit is strictly prohibited;

2.If the van has an in-traielr cargo device, the cargo should be fully tied up with the in-car cargo device;

3.For the safety of vehicles and persons when loading and unloading and transporting goods, it is strictly forbidden to load unbalanced goods in the carriage during loading and unloading or transportation;

Here are a few more important points of sidewall trailer:

1.Bottom Floor:Many Platform semi trailer are also used to transport semi trailer with side wall and other items. The bottom plate of the side wall semi trailer passes the international standard 3mm thick checkered plate

2. Main beam:The international standard for the main beam of a sideboard trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm.

3. SuspensionsYou can choose from different types of suspensions for your cargo semi trailer. like air suspension, spring suspension, bogie suspension.

4. Side door:The common height of side door is 600mm, 800mm, 1000mm. The side door adopts a vertical corrugated structure. The door frame is a 40x60mm rectangular steel tube.

dropside trailer for sale

wallside semi trailer
