    Tri Axle Interlink 40 Foot 60t Container Trailer Chassis

    Ask Lasest Price
    Brand Name : CIMC
    Model Number : Interlink Trailer
    Certification : CE
    Price : USD 10000-15000/unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 Unit/Units per Month
    Delivery Time : 25-30 work days
    • Product Details
    • Company Profile

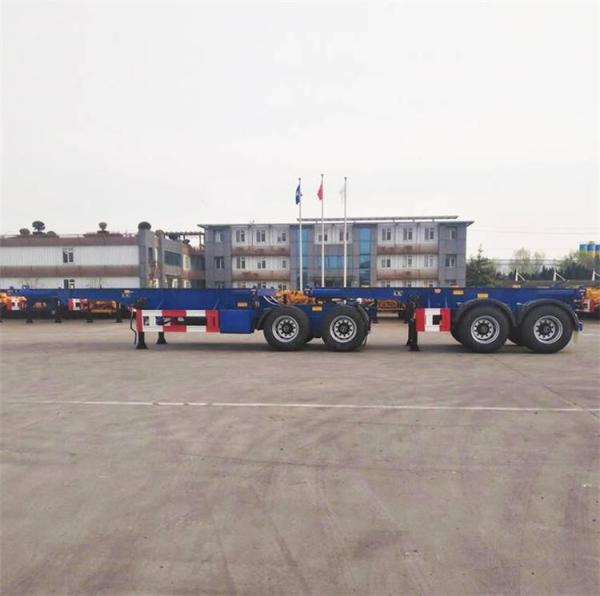

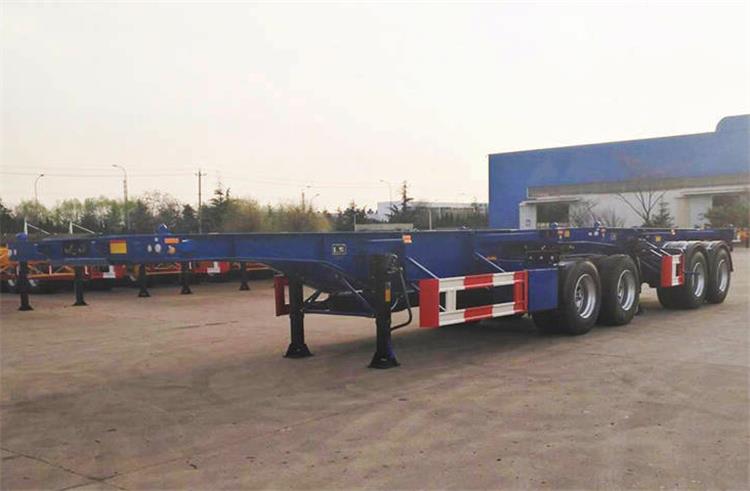

    Tri Axle Interlink 40 Foot 60t Container Trailer Chassis

    Tri axle 20 Foot Container Chassis Interlink Trailer for Sale


    Product Description:

    Interlink trailer for sale consists of two 20ft 3 axles container chassis trailers which are linked together. It could be hauled by one tractor truck. Interlink flat deck trailer for sale working life is 5 times longer than other brand trailer. Its lighter tare weight can also down the fuel consumption for the user.


    Container chassis includes 20, 40, 45 foot and other types. It is dedicated to transporting containers. It contains two kinds of skeletal trailer for long distance transportation and terminal trailer for port transportation.


    Feature:

    The loading capacity for CIMC container chassis trailer ranges from 40 tons - 60 tons. For heavyweight applications, you may want to consider having the 60 tons option. However, the 40 tons option could just be enough for most containers that you want to transport. This is a very important aspect to look at in your choice for a container chassis.


    Based on the axle configuration, CIMC commonly uses 2 axles. We can also customize 3 axle container chassis for different demands. All these options will be made available to you based on your needs.


    Owing to its application and use, the interlink trailer is constructed of high strength material such as Q345 steel. It is a robust structure designed and constructed to get you the services you need without many Fabrication is done through quality welding techniques that are tried and tested to ensure that the trailer meets high standards of quality.


    Specification of interlink trailer

    Type20ft interlink trailer
    Overall dimensios13131x2500x2650mm
    Loading weight60 ton
    Container twist lock8/12 pcs
    Main beamQ345B steel
    Side beam16 U shaped steel or I shaped steel
    Axle brandFUWA/BPW/CIMC brand
    Traction pin2” or 3.5”
    Landing gearJOST brand optional
    Suspension systemMechanical suspension, air suspension is optional
    Tire12.00R22.5 Triangle brand tires, others tires optional
    Brake6 big chamber brake system
    Tool box1 unit
    Side marker lampLED type
    Voltage24V
