    Bulk Cargo Transportation 2 Axle13M Dry Van Semi Trailer

    Ask Lasest Price
    Brand Name : CIMC
    Model Number : dry van trailer
    Certification : CE
    Price : USD 9800-13500 1/Unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 Units per Month
    Delivery Time : 25-30 Works
    • Product Details
    • Company Profile

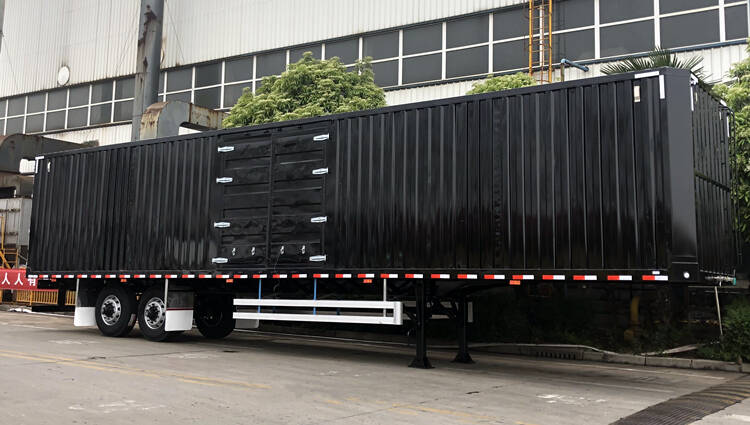

    Bulk Cargo Transportation 2 Axle13M Dry Van Semi Trailer

    2 Axle Box Dry Van Semi Trailer For Sale - CIMC Manufacturers


    Product Description:

    CIMC Dry van trailers are mainly used in the bulk cargo transportation.

    The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.

    The side wall height and side or back door numbers and opening ways have several options for your better usage.


    Features of box semi trailer:

    1. The body of the vehicle is made of high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
    2. Strong Loading Capacity,30-100 Tons Loading Range.
    3. Multi Door-Opening Style.Side/Rear/Wing Opening.
    4. Widely used in different areas, mainly used in long-haul freight transport.


    Specification of dry van trailer:


    Dimension

    13000mm*2500mm*4000mm

    Load Capacity(T)

    40T

    Axle

    2 axles

    Tire

    8 units

    Suspension

    Mechanical suspension

    King pin

    JOST brand 2.0 or 3.5inch(bolted or welded type)

    Support leg

    JOST brand

    Main beam

    Height: 500mm Upper Plate: 14mm Middle Plate: 8mm

    Bottom Plate is 16mm; Material: Q345B Steel

    Side beam

    16mm or 18mm steel channel(Material: Q235steel)

    Brake chamber

    WABCO

    ABS

    Optional

    Valve

    WABCO valve

    Light

    LED light (specially intended for oversea market)

    Voltage

    24V

    Receptacle

    7-pin Socket (for 7 wire harness)

    Semi Trailer

    Surface Coating

    Sandblasted, anti-rust chassis surface is available with 1layer of anticorrosive primer and 2 layers of top coats


    CIMC 2 axle dry van trailer for sale
