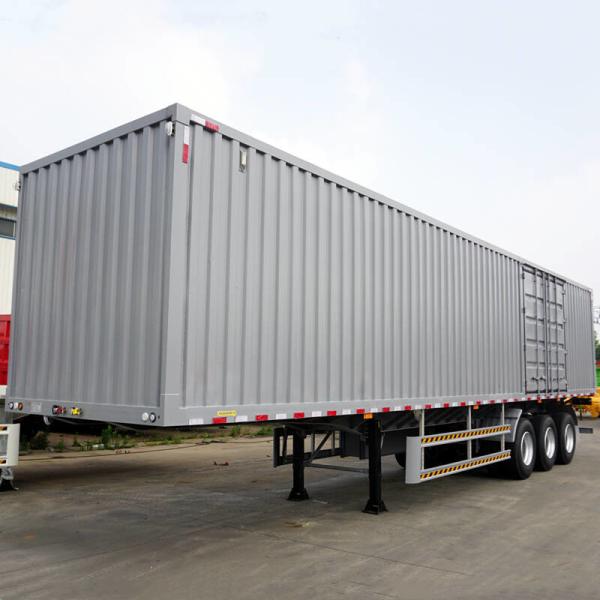

Heavy Duty Enclosed 3 Axle 40ft Dry Van Semi Trailer

    Buy cheap Heavy Duty Enclosed 3 Axle 40ft Dry Van Semi Trailer from wholesalers

    Buy cheap Heavy Duty Enclosed 3 Axle 40ft Dry Van Semi Trailer from wholesalers
    • Buy cheap Heavy Duty Enclosed 3 Axle 40ft Dry Van Semi Trailer from wholesalers

    Heavy Duty Enclosed 3 Axle 40ft Dry Van Semi Trailer

    Ask Lasest Price
    Brand Name : CIMC
    Model Number : Box semi trailer
    Certification : CE
    Price : USD 9800-13500 1/Unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 Units per Month
    Delivery Time : 25-30 Works
    • Product Details
    • Company Profile

    Heavy Duty Enclosed 3 Axle 40ft Dry Van Semi Trailer

    3 Axle 40ft Enclosed Van Cargo Box Truck Semi Trailer - CIMC Trailers


    Product Description:

    Box semi trailer has the function of availability and high protection of cargo. These trailers are fully closed and sealed. Therefore, freight is protected from any external influence.

    So this box trailer is one of the most commonly seen on the roads.

    Enclosed van trailers are used for moving non-perishable food and beverages, household goods, clothing items, plastic, and building products.

    Features of box semi trailer:

    Dry van trailers are versatile in terms of freight shipments, both for local and over-the-road routes.

    Enclosed van trailer is used for moving bluk cargo, include non-perishable food and beverages, household goods, clothing items, plastic, and building products.

    They are the most frequently used equipment type due to their versatility to hold a variety of different products.

    The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.


    The enclosed van semi-trailer is a semi-trailer with a beam-through structure and a closed side design for the upper part, which can effectively reduce the lateral risk when the vehicle is traveling at high speed, reduce energy consumption, and has a strong bearing capacity. The advantages of high safety factor, reasonable design, sturdiness and durability.
    According to the frame structure, it can be divided into straight beam type and gooseneck type. The straight beam semi-trailer has large loading space and high center of gravity; the gooseneck semi-trailer has a low center of gravity and good vehicle stability.


    Specification of box semi trailer:

    Dimension13000mm*2500mm*4000mm
    Load Capacity(T)60T
    Axle3 axles
    Tire12 units
    SuspensionMechanical suspension
    King pinJOST brand 2.0 or 3.5inch(bolted or welded type)
    Support legJOST brand
    Main beam

    Height: 500mm Upper Plate: 14mm Middle Plate: 8mm

    Bottom Plate is 16mm; Material: Q345B Steel

    Side beam16mm or 18mm steel channel(Material: Q235steel)
    Brake chamberWABCO
    ABSOptional
    ValveWABCO valve
    LightLED light (specially intended for oversea market)
    Voltage24V
    Receptacle7-pin Socket (for 7 wire harness)

    Semi Trailer

    Surface Coating

    Sandblasted, anti-rust chassis surface is available with 1layer of anticorrosive primer and 2 layers of top coats

    CIMC 3 axle cargo transport box semi trailer for sale

    Quality Heavy Duty Enclosed 3 Axle 40ft Dry Van Semi Trailer for sale
