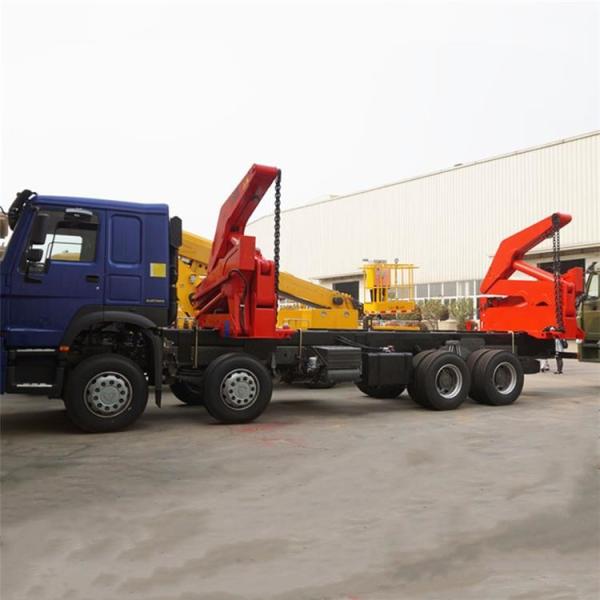

    Trombone Chassis 20ft 40ft 45ft CIMC Container Side Loader

    Side Lifter Truck Container Transport For Sale-CIMC Manufacturer


    Product Description:

    The side lfter truck can unload the container by himself in just a few minutes, without the need for additional personnel or equipment. This makes your operations cost effective.

    The most important thing to note is the telescopic chassis of the side lift, also known as the trombone chassis. This type of side lift container transport allows the device to shrink and expand, providing the space needed to accommodate a 20ft, 40ft or 45ft container.

    CIMC side lfter trailer work in multiple directions, allowing you to move containers up to 40 or 20 feet quickly and safely. You can also choose to stack them together to make the most of your space.

    Most importantly, they can be easily loaded and unloaded in narrow spaces, so they can achieve maximum value in busy warehouses and intercity locations.


    Main Specification of Side Loader:

    Overall dimension:12000mm*2500mm*4000mm
    Loading capacity :37ton
    Axles:2 axles
    Tire:8 units,12R22.5
    Suspension:Heavy duty mechanical spring suspension
    King pin:90#
    Langing gear:JOST
    Brake system :WABCO
    Electical system :24V , LED lights
    Power source:PTO and Japenese Kubota diesel engine
    Tow Chain:Igus (imported)

    Details of Side Lifter Truck:

    1.Save time and get more value:With the CIMC side lfter trailer for sale, the driver of the trailer can complete the loading and unloading operation of the container by himself within 5 minutes, and then the truck is on the road again.
    2.Wireless remote control and manual operation:CIMC sidelifter truck trailer is equipped with a wireless remote control and manual operation.The wireless remote control can control its legs and cranes within a range of 30m.
    3.Power take-off or diesel APU:CIMC equips your vehicle with a power take-off, which is the best solution for maximum reliability, service and economy.
    4.Flexible solutions:With the CIMC 40ft self-loading container truck trailer, you can get closer and lift safely and with high precision between trailers.

    side lift container transport

    Side lifter truck
