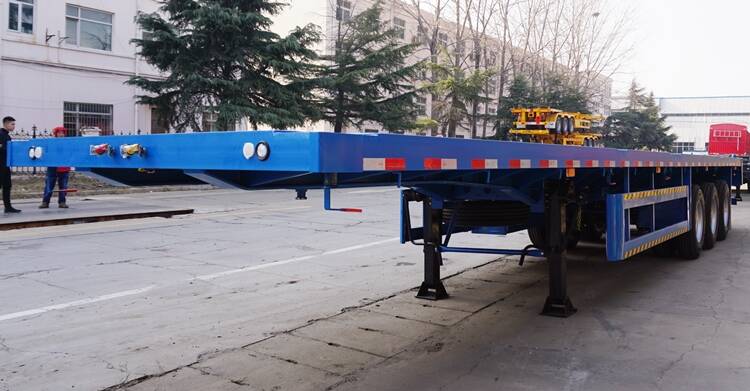

Mechanical Suspension Tri Axle 45Ft Flatbed Trailer

CIMC 45Ft Flatbed Trailer for Sale In Ghana

Product Description:

The function of a flatbed trailer is made possible through its structure’s design and manufacture. Basically, it is transport equipment mainly of a steel construction defining its frame. It also comprises a lighting system, brakes and tires.

It is carefully designed to desired heights and weight capacity to safely load and transport cargoes from one location to another. Use platform trailers to transfer cargo at the shipper’s warehouse. Unloaded to the consignee’s warehouse, when changing container trailer or boat on the way, there is no need to take the goods out of the box and change them.

Adavantage:

1. The shipping container trailer is welded by the longitudinal beam, the beam and the front and rear beams. The longitudinal beam is made of high quality steel plate 16Mn submerged arc welded into an I-shape (main size is 450, 500). The beam is punched into a trough type with high quality steel plate, front and rear ends. The beam is a welded rectangular section. An integral long beam is arranged at the intermediate container locking device to improve the carrying capacity of the container locking device

2. The common container trailer chassis is easy to use and affordable. However, you will need auxiliary equipment such as the overhead cranes for loading and unloading the containers from the chassis.

3. Most important to note about container chassis trailers is the fact that they come in different types and that includes both robust and lightweight options. This is because of the reason that there those that are used in heavyweight applications and the others are used in lightweight operations.

Specification of Container chassis trailer

Type	Container semi trailer
Overall dimensions	130002500 1550mm
Loading weight	60 ton
Container twist lock	8/12 pcs
Main beam	Q345B steel
Side beam	16 U shaped steel or I shaped steel
Axle brand	FUWA/BPW/CIMC brand
Traction pin	2” or 3.5”
Landing gear	JOST brand optional
Suspension system	Mechanical suspension, air suspension is optional
Tire	12.00R22.5 Triangle brand tires, others tires optional
Brake	6 big chamber brake system
Tool box	1 unit
Side marker lamp	LED type
Voltage	24V

CIMC 45ft shipping container trailer

CIMC 3 axle container skeleton trailer

CIMC 60t Flatbed Semi Trailer for Sale
