Agricultural Three Axle 40 Foot Skeleton Chassis Trailer

    Buy cheap Agricultural Three Axle 40 Foot Skeleton Chassis Trailer from wholesalers

    Buy cheap Agricultural Three Axle 40 Foot Skeleton Chassis Trailer from wholesalers
    • Buy cheap Agricultural Three Axle 40 Foot Skeleton Chassis Trailer from wholesalers

    Agricultural Three Axle 40 Foot Skeleton Chassis Trailer

    Ask Lasest Price
    Brand Name : CIMC
    Model Number : Intermodal trailers
    Certification : CE
    Price :
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 Unit/Units per Month
    Delivery Time : 25-30 work days
    • Product Details
    • Company Profile

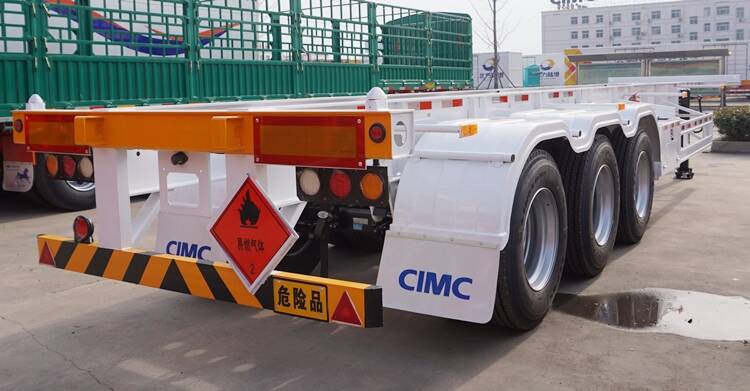

    Agricultural Three Axle 40 Foot Skeleton Chassis Trailer

    CIMC 40Foot Skeleton Chassis Trailer For Sale in Kenya


    Intermodal trailers Description:

    CIMC Tri axle chassis for sale 40ft container skeleton trailer is currently used in port. CIMC terminal trailer is a high capacity terminal trailer capable of carrying a container payload of up to 70 tons. This trailer is designed to transport either a single 20ft, twin 20ft, a 40 ft, or a 45ft container at once.

    You just have to drop 'em boxes and take 'em boxes. The application of the terminal trailer increased the handling rate by 30%; capable of operating flippers without entangling with other containers.

    For the product quality, we used high strength steel at the main beam, this makes the product carry large capacity and the product does not cause product deformation. We not only provide high quality products but also provide quality pre-sale services and after-sales services. So you can rest assured to buy our products.


    Feature:

    1. The optional Jost landing leg, is a world recognized famous brand accessory with Better bearing capacity and long service life.
    2. Cargo container trailer braking system, effective braking, fast braking response, braking distance reduced by more than 5m.
    3. Polyurethane paint, high adhesion, high chroma, beautiful color.
    4. Able to custom-built design as your requirement, ensure to meet your local road regulation.
    5. The 40 feet container trailer brake gas pipe of semi-trailer adopts a high-pressure rubber gas pipe, with a service life of more than 10 years.
    6. The whole intermodal trailer adopts LED lamps and lanterns, and a set of tail lamps and side lamps will be presented when the goods are delivered.
    7. The suspension of the container chassis trailer is made of special high-strength rigid steel, 70mm center balance pin, Other factories use light suspension, the pin is only 45mm, the service life is short, it will cause abnormal wear.

    Specification:

    TypeIntermodal trailers
    Overall dimensios12400x2500x1550 mm
    Loading weight30ton -50 ton
    Container twist lock8/12 pcs
    Main beamQ345B steel
    Side beam16 U shaped steel or I shaped steel
    Axle brandFUWA/BPW/CIMC brand
    Traction pin2” or 3.5”
    Landing gearStandard 28 ton, brand optional
    Suspension systemMechanical suspension, air suspension is optional
    Tire12.00R22.5 Triangle brand tires, others tires optional
    Brake6 big chamber brake system
    Tool box1 unit
    Side marker lampLED type
    Voltage24V

    CIMC container chassis trailer

    CIMC 3 axle intermodal chassis for sale

    CIMC 40ft intermodal container chassis
