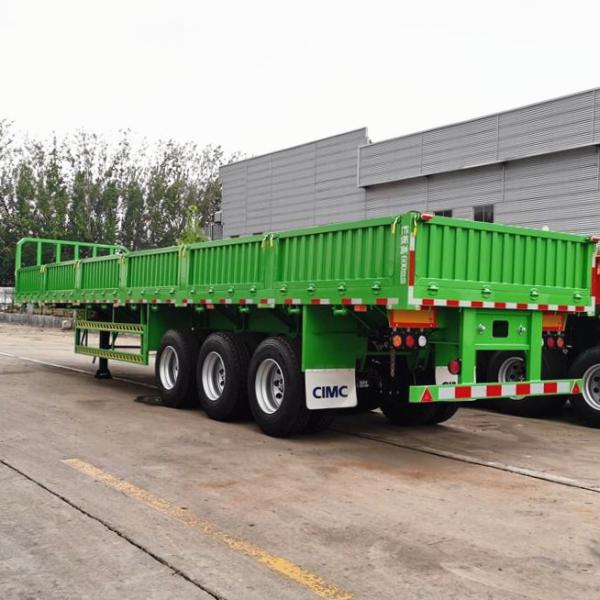

CIMC 3 Axle Cargo Open Top Semi Trailer for Sale
Product Description:
The open top semi trailer of suspension system is a three-axis leaf spring suspension, which
is used to support the load and has the function of absorbing
driving vibration and so on.
The CIMC 3 axle 50t open top trailer is widely used to transport containers, pipe, steel, lumber, heavy
equipment, and any other item that would be difficult to load into
the back of a trailer.
The 3 axle dry cargo trailer is mainly used for transporting steel, timber, stone, and other
cargo goods. The advantage of the sidewall trailer is that it can carry goods like super long, super wide and super
high.it have wide applicability.
It consists of a screw rod transmission mechanism, a bevel gear
transmission mechanism, a two-speed reduction box, a transmission
rod, an operating handle, and the like.
The rear of the frame is equipped with brake lights, turn signals,
parking lights, reversing lights, license plate lights, fog lights
and triangular reflectors, and front and side lights with front
position and width lights, side marker lights, front right Equipped
with ABS indicator. The voltage of various lamps is DC 24V.
Specification of Open Top Semi Trailer:
| L*W: | 12500mm*2500mm |
| Sidewall Height: | 600mm |
| Max. Payload: | <50T |
| Application: | Coal/Cargo/Containers Loading |
| Material: | Q345B Steel |
| Bottom Platform: | 3mm-thick checkered plate |
| King Pin: | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Support leg: | JOST brand |
| Suspension: | Airbag / Mechanical / Bogie suspension |
| Axles: | FUWA/BPW/CIMC/other |
| Tires: | 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
| Brake System: | WABCO |
| Electrical System: | 24-volt lighting system |
Details of open top semi trailer:
| 1.Electrical system: The open top trailer is equipped with an international electrical system that is
compatible with the tractor. There are electrical connector sockets
on the front beam of the frame. |
| 2.Suspension system: Suspension device support is welded on the back and the lower part
of the longitudinal beam and support device support is provided on
the lower front part. |
| 3.Axles and wheels: Three axle assemblies of the same structure are installed under the
suspension system. |
| 4.Support leg: In order to make the semi-trailer reliably parked after leaving the
truck head, the front end of the frame is equipped with two support
legs that are linked left and right or left and right. |
